Place of Origin:
Chongqing, China
Brand Name:
TAIWO
Certification:
ISO9001
Model Number:
TAIWO-WGJ-011
Contact Us

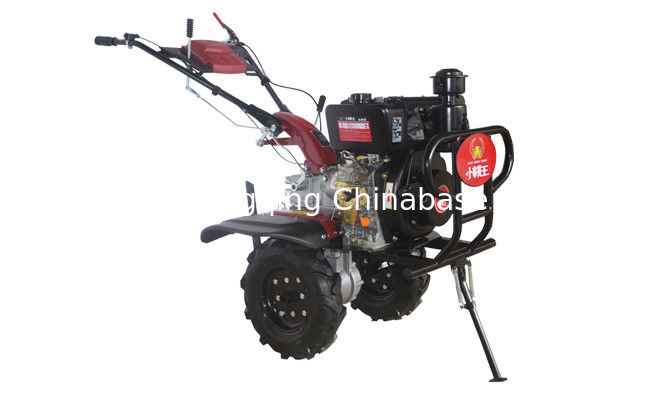

178F Diesel 5 Gear Positions 4.0KW Tiller Machine Agricultural
Description
Adjust the clutch cable
When you do not hold the handle or release the handle (handle lever type: when the lever is pulled back), the clutch is disengaged, and the agriculture tiller machine (tool) cannot move.
When the handle is gripped (handle lever type: push the lever forward) Time), due to the tension of the tension spring, the tensioning wheel moves up, so that the V-belt is tensioned (called combination), the agriculture tiller machine (tool) runs, and the machine (tool) is in working condition.
If the clutch is not separated clearly or the belt is slipping, adjust the clutch cable bolt by loosening the lock nut on the clutch cable tube and adjust the bolt with a wrench.
Specification
| Item | Specification |
| Power Type | Diesel |
| Net Weight | 84KG |
| Package Size(L*W*H) | 960mm*600mm*850mm |
| Transmission Type | Direct Gear Transmission |
| Tillage Width | 1050mm |
| Engine Model | 178F Diesel Engine |
| Rated Power | 4.0KW 3600rpm |
| Working Efficiency | 0.1～0.3m/s |
| Warranty | 1 Year |
Advantage
1. The cheapest for Tiller Machine Agricultural by micro-diesel engine powered with high efficient.
2. The multifunctional Tiller Machine Agricultural is with light weight, small size, simple structure and so on.
3. Tiller Machine Agricultural is widely used in plains, mountains, hills of dry land, paddy fields, orchards and so on.
4. Coupled with the appropriate equipment is not only used for pumping, power generation, spraying, spraying and other operations, but also towing trailers for short-distance transport, Tiller Machine Agricultural can exercise freely in the field, user-friendly and storage, eliminating the need for large-scale agricultural machinery can’t enter troubles in the mountains, Tiller Machine Agricultural is the best choice for farmer consumers to replace cattle farming.
5. Tiller Machine Agricultural has strong power diesel engine.
6. Replaceable wheels and affiliated fittings, the Tiller Machine Agricultural can be available to work in the water paddy field land and dry land, it also can do weeding, tiller, grass cutting, hole digging, ridge mowing, planting, etc.
7. The multifunctional Tiller Machine Agricultural is more light weight and high efficiency than the traditional tiller machine.
8. The multifunction Tiller Machine Agricultural can turn around 360° angle, is more convenient for different performance.
