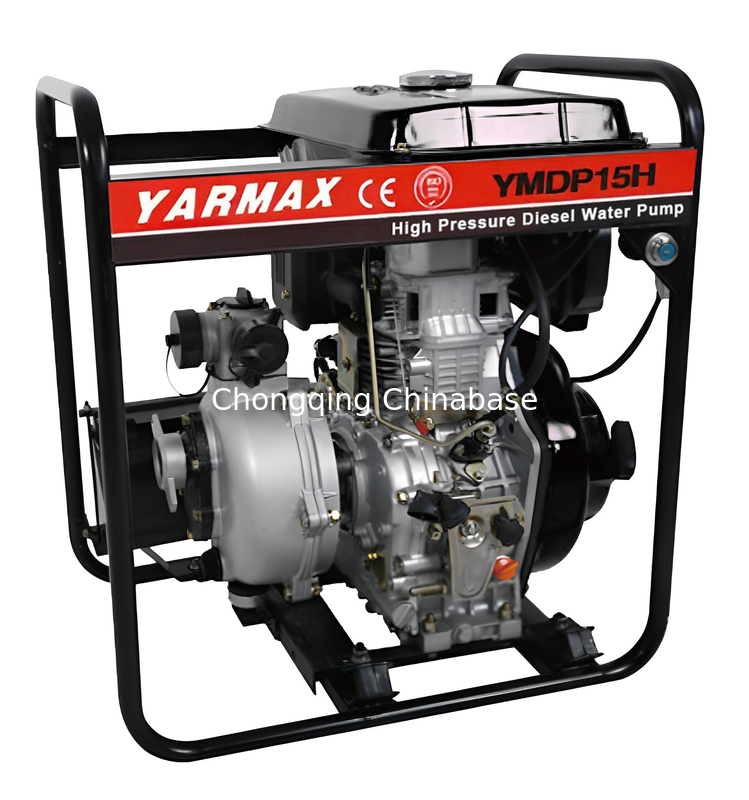

High pressure YMDP15H Single Cylinder 8HP Diesel Engine Water Pump With 4 Stroke

High pressure YMDP15H Single Cylinder 8HP Diesel Engine Water Pump With 4 Stroke

9HP Diesel Engine Water Pump

4 Stroke Diesel Engine Water Pump

Single Cylinder 9hp diesel engine pump

Place of Origin:

Changzhou, China

Brand Name:

YARMAX

Certification:

ISO9001, CE

Model Number:

YMDP15H

Contact Us

Request A Quote
Product Details
Name:
Diesel Engine Water Pump YMDP15H
Power Type:
Diesel
Rated Power:
8HP
Rated Speed:
3600rpm
Net Weight:
46KG
Emission Standard:
National Ⅱ
Work Size:
570mm*465mm*670mm
Discharge Capacity Capacity:
20m³/h
Total Head Lift:
70m
Fuel Tank Capacity:
3.5L
Fuel Consumption Rate:
285g/kW.h
Maximum Suction:
8m
Certifacation:
ISO9001, CE
RELATED PRODUCTS
Contact Us
Product Description

High pressure YMDP15H Single Cylinder 8HP Diesel Engine Water Pump With 4 Stroke



Diesel Engine Water Pump Description



Diesel Engine Water Pump are used to provide continuous supply of water to industrial, commercial establishments, houses, hospitals, aquariums, and agriculture.

Valves and tanks divert water, and can suck and discharge liquids containing large solids and long fiber impurities. They can be widely used in municipal sewage, flood control and drought relief, mountain farmland irrigation, river pumping, etc. YARMAXdiesel water pump is the best model water pump in the market.



Diesel Engine Water Pump Specification



Item Specifications
Rated Power 8HP
Displacement 296mL
Emission Standard National Ⅱ
Net Weight 46KG
Discharge capacity 20m³/h
Total head lift 70m
Maximum Suction 8m
Warranty 1 Year





Advantage



1 Perfect quality, high-end craftsmanship, excellent technology;

2 Widely used, our diesel engine water pump can be used in different fields, such as: agriculture, construction, water conservancy, fire protection, etc.;

3Small size, which is conducive to transportation, transfer, placement, storage, use, etc.;

4 With high power, the machine can guarantee the effective completion of the work;

5Long lift, eliminating unnecessary installation problems;

6Large suction range, able to complete the work better;

7 The weight of diesel engine water pump is light, convenient for one person to operate and carry;

8 Our diesel engine water pump has more adaptability, can work normally in a variety of venues and environments;





Feature



YARMAXoriginal 4-stroke diesel air-cooled engine power;

Low oil pressure alarm;

Aluminum alloy pump body;

Small fuel tank is light and easy to carry;

Large fuel tank can run longer;

Hand starting saves costs;

Electric starting is easy to operate;

Machine accessories:

water inlet filter, fixed parts for import and export water pipes, product manuals, product certificates, maintenance kits;

Scope of application:

Residential underground water drainage, drought and flood emergency pumps, farmland irrigation and drainage mobile pumps, etc.
