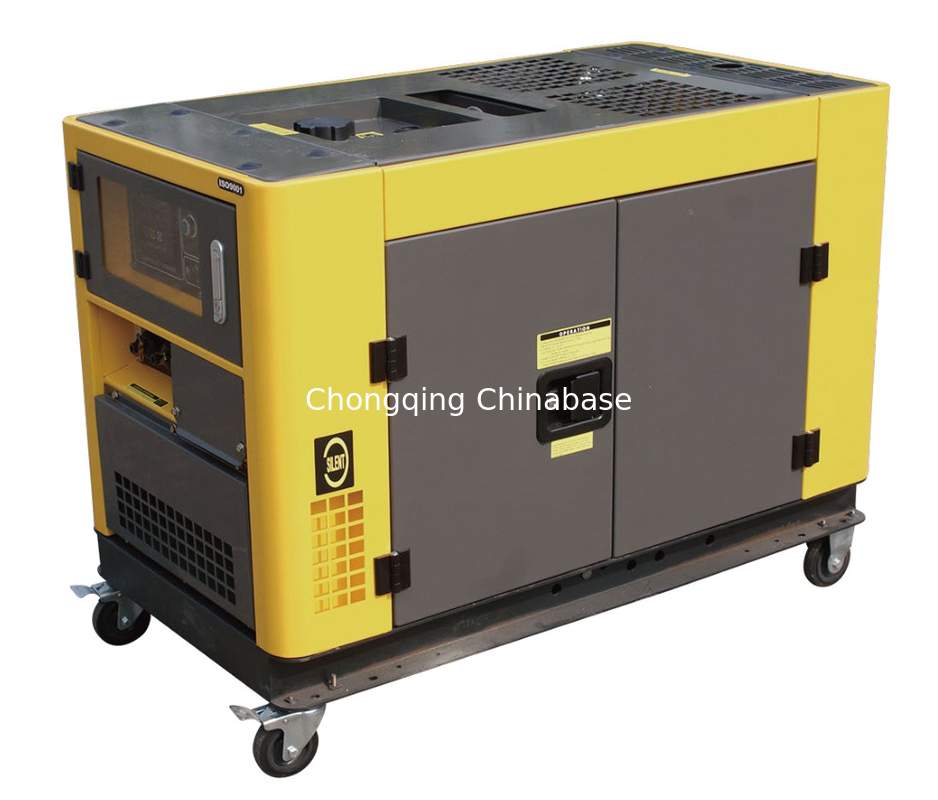

220V 9KW 10KW Silent Diesel Generator YM13000T YM2V88 Air-cooled

220V 9KW 10KW Silent Diesel Generator YM13000T YM2V88 Air-cooled

230V 6KW Silent Diesel Generator

KDE7800STN Small Silent Generator

6KW Small Silent Generator

Place of Origin:

Changzhou, China

Brand Name:

YARMAX

Certification:

ISO9001, CE

Model Number:

YM13000T

Contact Us

Request A Quote
Product Details
Rated Frequency:
50Hz
Rated Output Power:
9KW
Maximum Power:
10KW
Rated Voltage:
220V
Rated Current:
40.9A
Rated Speed:
3000r/min
Phase:
Single
Power Factor:
1.0Cosφ
Insulation Level:
F
Pole Number:
2
Excitation Mode:
Self-excited Constant Voltage (with AVR)
Panel Form:
Normal
Output Mode:
With
DC12 Output:
DC12V 8.3A Terminal
Work Size(L*W*H):
985mm*720mm*740mm
Net Weight:
245KG
Noise Level:
74db Away 7 Meters
Structure Mode:
Silent Frame
Engine Model:
YM2V88
Marketing Type(engine):
Single Cylinder,4 Stroke,air Cooled, Direct In Injection
Bore*Stroke(engine):
92mm*75mm
Displacement(engine):
499mL
Maximum Power(engine):
13.0KW,3000r/min
Compression Ratio(engine):
19:1
Ignition Mode:
Compressed
Cooling Mode:
Air
Lubrication Mode:
Combined Pressure And Splash
Starting Mode:
Electric
Fuel:
Diesel
Lubricating Oil:
SAE10W30(Above CD Level)
Lubricating Oil Capacity:
2.3L
Starting Motor Capacity:
12V 1.6KW
Flywheel Generator Capacity:
100W
Accumulator Capacity:
12V 36Ah
Specific Fuel Consumption:
245g/kw.h
Unit Fuel Tank Capacity:
25L
RELATED PRODUCTS
Contact Us
Product Description

230V 9KW 10KW Silent Diesel Generator YM13000T YM2V88 Air-cooled





Description



In our daily life, we always encounter unexpected situations, such as sudden power failure. At this time, we need the help of portable diesel generators in order to maintain a normal life. Because the power of household electrical equipment is generally not very large, the portable diesel generator can be fully operated easily.



For regions or countries where electricity is lacked, it is necessary to have a generator at home to prevent emergencies, or emergencies such as emergencies.





Advantage



1. Product performance is stable and can work stably for a long time;

2. The 1-year warranty period allows you to use it more assuredly;

3. The noise caused by working is very low, and the impact on the working environment is smaller;





Specification



Item Specification
Rated Frequency 50Hz
Rated Output Power 9KW
Rated Current 40.9A
Output Mode 230V Socket*2
Net Weight 245KG
Noise Level 74db away 7 meters
Engine Model YM2V88
Starting Motor Capacity 12V 1.6KW
Accumulator Capacity 12V 36Ah





Advantage



commitment



Based on the spirit of "all pursuit of high quality, customer satisfaction as the purpose", we solemnly promise you with the principle of "the most favorable price, the most considerate service, and the most reliable product quality":



Product Quality Commitment:

1. The manufacturing and testing of portable diesel generators have quality records and testing data.

2. For product performance testing, we sincerely invite users to personally inspect the whole process and performance of the portable diesel generator, and then pack and ship the product after it is confirmed to be qualified.



Product price commitment:

1. In order to ensure the high reliability and advancement of the portable diesel generator, the selection of materials for the system is selected from domestic or international high-quality brand-name products.

2. Under the same competitive conditions, our company will sincerely provide you with the most favorable price on the basis of not reducing product technical performance or changing product components.



Delivery time commitment:

1. Product delivery time: try to meet user requirements. If there are special requirements and need to be completed in advance, our company can specially organize production and installation, and strive to meet user requirements.
