YM11000E 36.4A 8.0KW 8.8KW Open Diesel Generator YM1100FE Single cylinder

YM11000E 36.4A 8.0KW 8.8KW Open Diesel Generator YM1100FE Single cylinder

21.7A 5.5KW Diesel Small Generator

KDE8800E Portable Diesel Generator

KM195F Portable Diesel Generator

Place of Origin:

Changzhou, China

Brand Name:

YARMAX

Certification:

ISO9001, CE

Model Number:

YM11000E

Contact Us

Request A Quote
Product Details
Rated Frequency:
50Hz
Rated Output Power:
8KW
Maximum Power:
8.8KW
Rated Voltage:
230V
Rated Current:
36.4A
Rated Speed:
3000r/min
Phase:
Single
Power Factor:
1.0Cosφ
Insulation Level:
F
Pole Number:
2
Excitation Mode:
Self-excited Constant Voltage (with AVR)
Panel Form:
Normal
Output Mode:
Terminal
DC12 Output:
DC12V 8.3A
Work Size(L*W*H):
790mm*598mm*715mm
Net Weight:
150KG
Noise Level:
85db Away 7 Meters
Structure Mode:
Open Frame
Engine Model:
YM1100FE
Marketing Type(engine):
Single Cylinder,4 Stroke,air Cooled, Direct In Injection
Bore*Stroke(engine):
100mm*85mm
Displacement(engine):
667mL
Maximum Power(engine):
10.5KW,3000r/min
Compression Ratio(engine):
19:1
Ignition Mode:
Compressed
Cooling Mode:
Air
Lubrication Mode:
Combined Pressure And Splash
Starting Mode:
Electric
Fuel:
Diesel
Lubricating Oil:
SAE10W30(Above CD Level)
Lubricating Oil Capacity:
2L
Starting Motor Capacity:
12V 1.6KW
Flywheel Generator Capacity:
100W
Accumulator Capacity:
12V 36Ah
Specific Fuel Consumption:
280g/kw.h
Unit Fuel Tank Capacity:
15L
RELATED PRODUCTS
Contact Us
Product Description

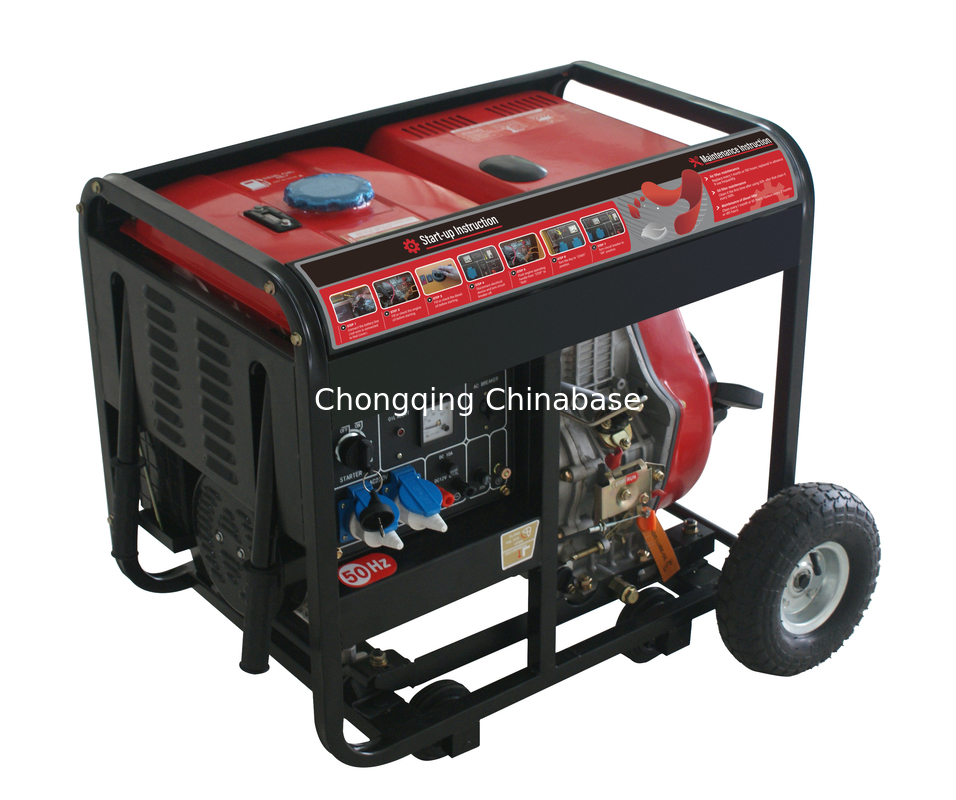

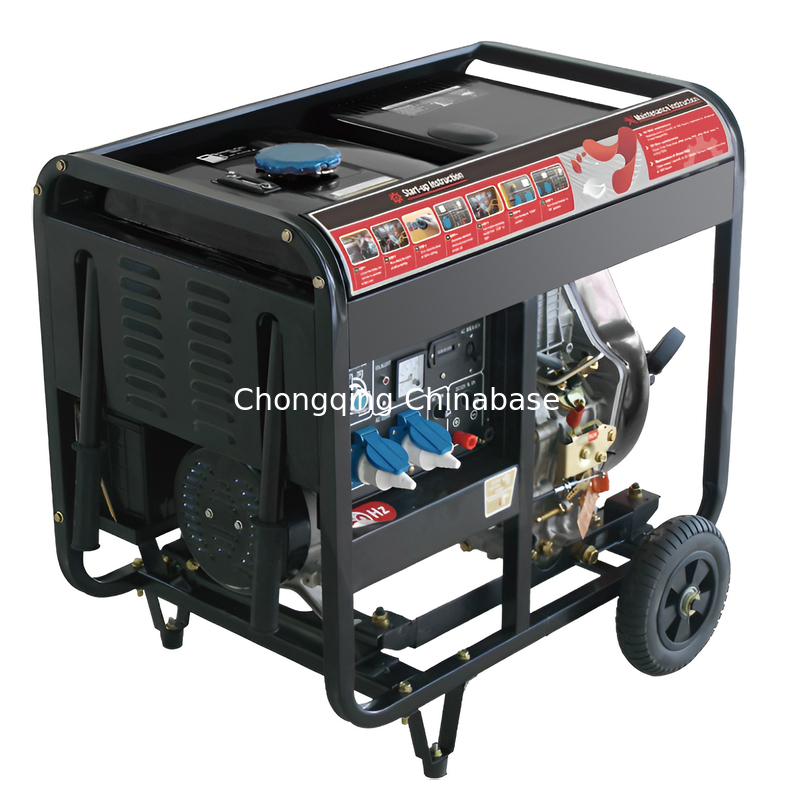

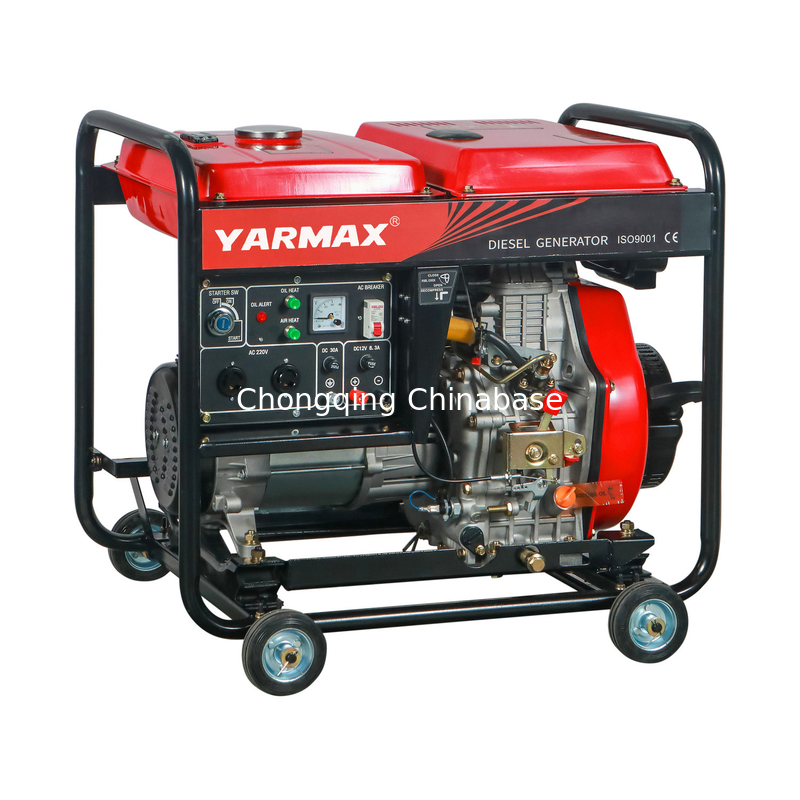

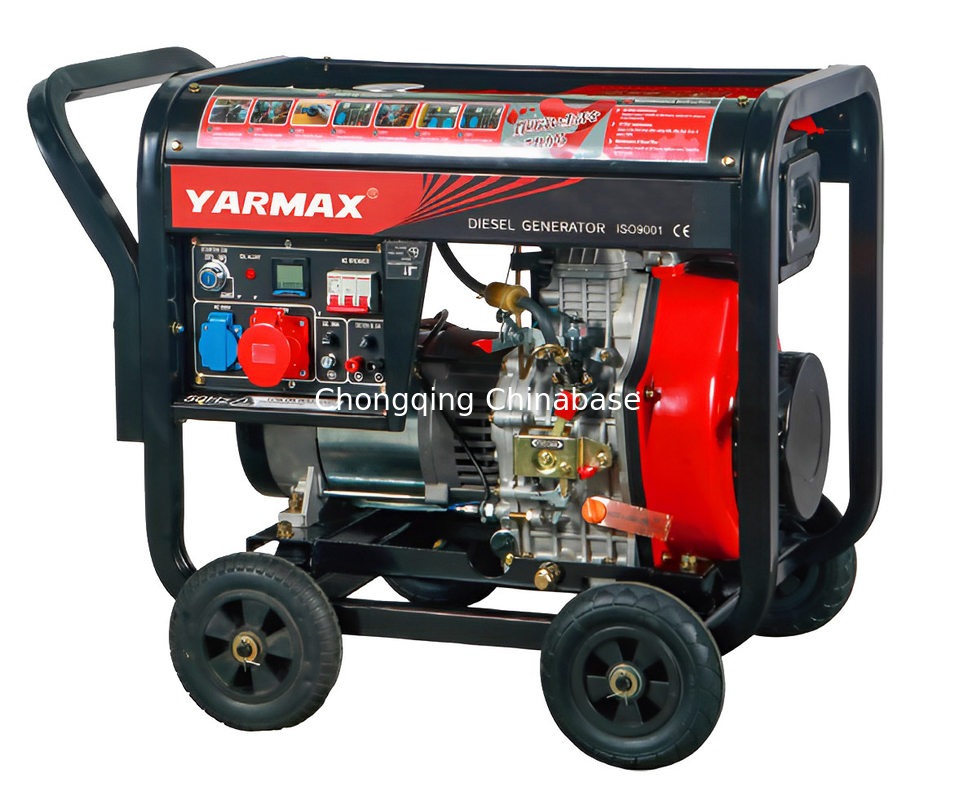

YM11000E 36.4A 8.0KW 8.5KW Open Diesel Generator YM1100FE Single cylinder





Description



Our products’ advantage:

The material is sturdy, the appearance is exquisite, the color and workmanship are very good, the power is enough to work,the quality is excellent, the noise is also very slight, the startup speed is also fast, the operation is simple, and the overall effect is extremely excellent; when the portable diesel generator runs smoothly, the anti-vibration effect is very good, the sound is fine, the machine quality is excellent, the workmanship is exquisite, the noise is low, the fuel consumption is low, and the power is high.





Specification



Item Specification
Rated Frequency 50Hz
Rated Output Power 8.0KW
Rated Current 36.4A
Output Mode 230V Socket*2
Net Weight 150KG
Noise Level 85db away 7 meters
Engine Model YM1100FE
Starting Motor Capacity 12V1.6KW
Accumulator Capacity 12V 36Ah





commitment



Based on the spirit of "all pursuit of high quality, customer satisfaction as the purpose", we solemnly promise you with the principle of "the most favorable price, the most considerate service, and the most reliable product quality":



Product Quality Commitment:

1. The manufacturing and testing of portable diesel generators have quality records and testing data.

2. For product performance testing, we sincerely invite users to personally inspect the whole process and performance of the portable diesel generator, and then pack and ship the product after it is confirmed to be qualified.



Product price commitment:

1. In order to ensure the high reliability and advancement of the portable diesel generator, the selection of materials for the system is selected from domestic or international high-quality brand-name products.

2. Under the same competitive conditions, our company will sincerely provide you with the most favorable price on the basis of not reducing product technical performance or changing product components.



Delivery time commitment:

1. Product delivery time: try to meet user requirements. If there are special requirements and need to be completed in advance, our company can specially organize production and installation, and strive to meet user requirements.
