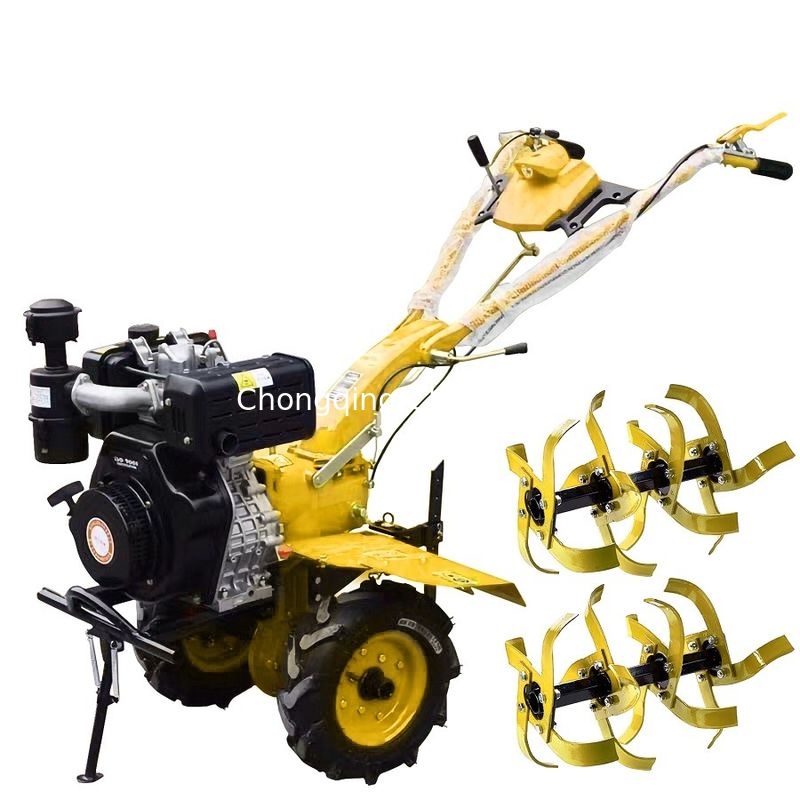

188F Wet Friction Plate Diesel 7.2KW Tiller Ploughing Machine
Description
Operation of the clutch of the Tiller Ploughing Machine: when the clutch handle is gripped, the clutch is in the connected state. When the clutch handle is not held or the clutch handle is loosened, the clutch is in a disengaged state. The operation method of the lever clutch is: push the lever forward, the clutch is engaged, and the lever is backward. Pull it, the clutch is disengaged.
During plowing, change the connection height of the resistance bar and the Tiller Ploughing Machine to adjust the maximum tillage depth. In tillage, you can press down or raise the handrail to adjust the tillage depth in time.
Specification
| Item | Specification |
| Power Type | Diesel |
| Net Weight | 130KG |
| Package Size(L*W*H) | 1000mm*570mm*835mm |
| Transmission Type | Direct Gear Transmission |
| Tillage Width | 900mm-1350mm |
| Engine Model | 188F Diesel Engine |
| Rated Power | 7.2KW 3600rpm |
| Fuel Tank Capacity | 5.5L |
| Warranty | 1 Year |
Advantage
1. The cheapest for Tiller Ploughing Machine by micro-diesel engine powered with high efficient.
2. The multifunctional Tiller Ploughing Machine is with light weight, small size, simple structure and so on.
3. Tiller Ploughing Machine is widely used in plains, mountains, hills of dry land, paddy fields, orchards and so on.
4. Coupled with the appropriate equipment is not only used for pumping, power generation, spraying, spraying and other operations, but also towing trailers for short-distance transport, Tiller Ploughing Machinecan exercise freely in the field, user-friendly and storage, eliminating the need for large-scale agricultural machinery can’t enter troubles in the mountains, Tiller Ploughing Machine is the best choice for farmer consumers to replace cattle farming.
5. Tiller Ploughing Machine has strong power diesel engine.
6. Replaceable wheels and affiliated fittings, the Tiller Ploughing Machine can be available to work in the water paddy field land and dry land, it also can do weeding, tiller, grass cutting, hole digging, ridge mowing, planting, etc.
7. The multifunctional Tiller Ploughing Machine is more light weight and high efficiency than the traditional tiller machine.
8. The multifunction Tiller Ploughing Machine can turn around 360° angle, is more convenient for different performance.
