Place of Origin:
Chongqing, China
Brand Name:
TAIWO
Certification:
ISO9001
Model Number:
TAIWO-WGJ-005
Contact Us

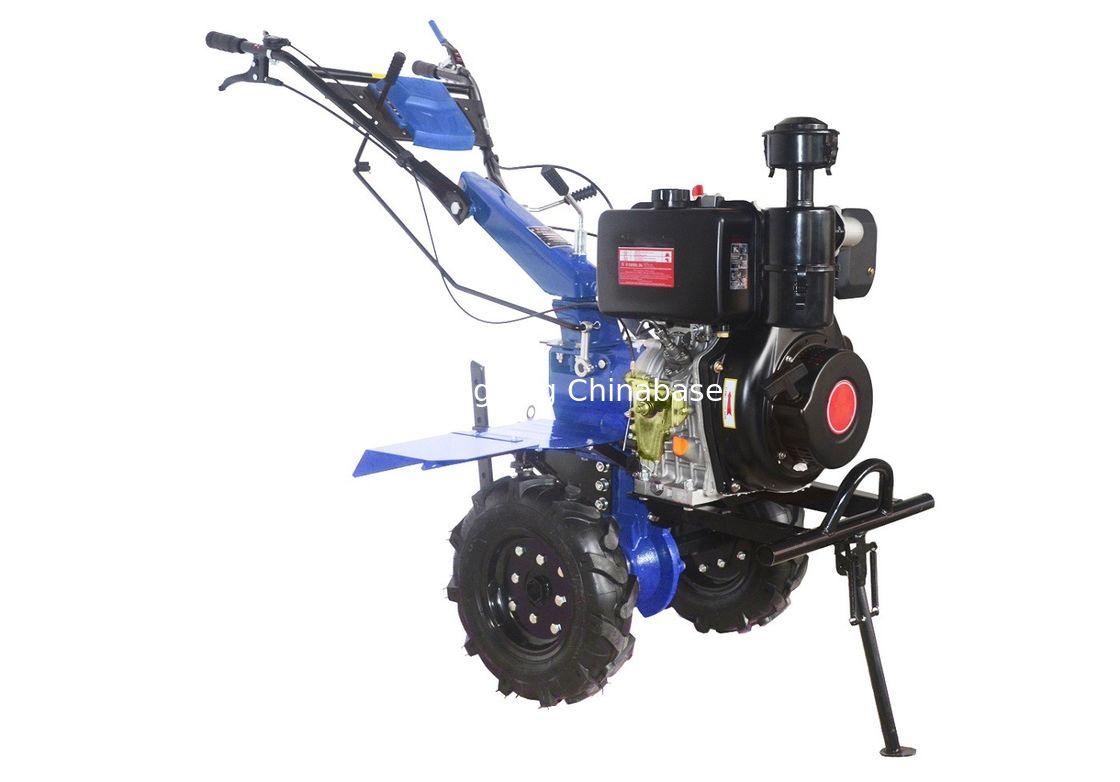

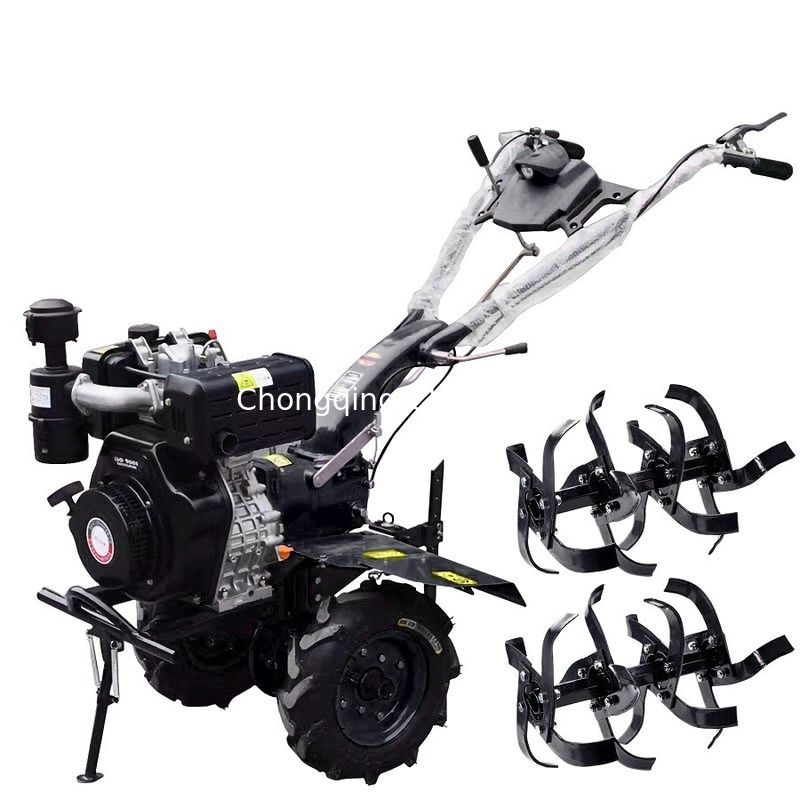

188F Wet Friction Plate Diesel 7.2KW Tiller Machine Agricultural
Description
Our Tiller Machine Agricultural is belonged to direct drive model.
The general structure of Tiller Machine Agricultural is: the engine and the gearbox are directly connected through a flange plate, and the power is directly transmitted to the gearbox through a wet friction clutch or a cone friction clutch. The gearbox and walking box are all integrated, and there are three kinds of shafts in the gearbox: main shaft, counter shaft, reverse shaft.
By turning the position of the double spur gear on the main shaft and reverse shaft, fast gear, slow gear and reverse gear can be realized. The power is output after reversing and decelerating through two sets of straight bevel gears.
Specification
| Item | Specification |
| Power Type | Diesel |
| Net Weight | 130KG |
| Package Size(L*W*H) | 1000mm*570mm*835mm |
| Transmission Type | Direct Gear Transmission |
| Tillage Width | 900mm-1350mm |
| Engine Model | 188F Diesel Engine |
| Rated Power | 7.2KW 3600rpm |
| Fuel Tank Capacity | 5.5L |
| Warranty | 1 Year |
Advantage
1. The cheapest for Tiller Machine Agricultural by micro-diesel engine powered with high efficient.
2. The multifunctional Tiller Machine Agricultural is with light weight, small size, simple structure and so on.
3. Tiller Machine Agricultural is widely used in plains, mountains, hills of dry land, paddy fields, orchards and so on.
4. Coupled with the appropriate equipment is not only used for pumping, power generation, spraying, spraying and other operations, but also towing trailers for short-distance transport, Tiller Machine Agricultural can exercise freely in the field, user-friendly and storage, eliminating the need for large-scale agricultural machinery can’t enter troubles in the mountains, Tiller Machine Agricultural is the best choice for farmer consumers to replace cattle farming.
5. Tiller Machine Agricultural has strong power diesel engine.
6. Replaceable wheels and affiliated fittings, the Tiller Machine Agricultural can be available to work in the water paddy field land and dry land, it also can do weeding, tiller, grass cutting, hole digging, ridge mowing, planting, etc.
7. The multifunctional Tiller Machine Agricultural is more light weight and high efficiency than the traditional tiller machine.
8. The multifunction Tiller Machine Agricultural can turn around 360° angle, is more convenient for different performance.
