Blade Type Gasoline 4.0KW Mini Tiller Cultivator With Double Shaft

Blade Type Gasoline 4.0KW Mini Tiller Cultivator With Double Shaft

4.0KW Mini Tiller Cultivator

Blade Type Mini Tiller Cultivator

4.0KW mini power tiller

Place of Origin:

Chongqing, China

Brand Name:

TAIWO

Certification:

ISO9001

Model Number:

TAIWO-TYJ-002

Contact Us

Request A Quote
Product Details
Name:
Mini Tiller Cultivator
Gross Weight:
135KG
Net Weight:
112KG
Tare Weight:
23KG
Power Type:
Gasoline
Engine Model:
170F
Rated Power:
4.0KW
Rated Speed:
3600r/min
Main Clutch Type:
Friction Plate Type
Handlebar Level:
Adjustable
Handlebar Up And Down:
Adjustable
Type Of Supporting Ditching Device:
Blade Type
Maximum Working Width Of Supporting Trenching Device:
260mm
Type Of Supporting Soil Cultivation Device:
Blade Type
The Maximum Working Width Of The Supporting Soil Cultivating Device:
260mm
Warranty:
1 Year
RELATED PRODUCTS
Contact Us
Product Description

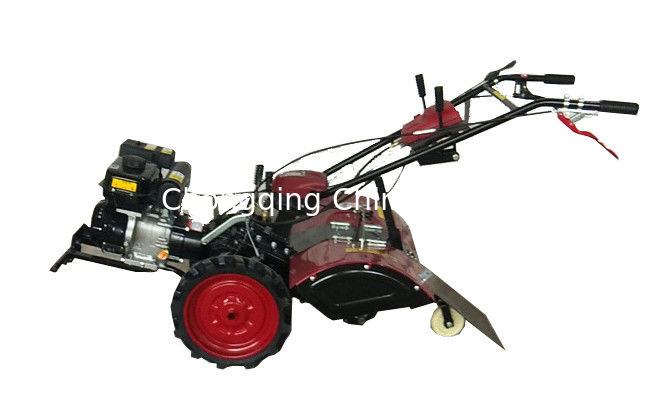

Blade Type Gasoline 4.0KW Mini Tiller Cultivator With Double Shaft



Description of Mini Tiller Cultivator



Mini Tiller Cultivator are used in the hills,slopes, small field,garden,nursery,greenhouse, wet paddy, etc. It is a new type of small agricultural machine used by farmers or homeowners. It is compact, powerful and, most importantly inexpensive.

There are various types of power for them: diesel engine ,Gasoline engine/air cooled diesel .You can choose each type according to your requirements.



Specification of Mini Tiller Cultivator



Item Specification
Structure Type Double Shaft, Wheel Type
Work Size 1740mm*760mm*900mm
Net Weight 112KG
Engine Model 170F
Power Type Gasoline
Rated Power 4.0KW 3600rpm
Transmission Mode Direct
Working Width 260mm



Advantage of Mini Tiller Cultivator



1. Standard functions: ditching, earth-raising, wasteland clearing, weeding, ridging

2. Optional functions: more than 40 kinds of functions, such as medicine, sowing, fertilization, rotary tillage, soil loosening, medium tillage, deep tillage, weeding, spraying insecticide, harvesting, spreading film, pumping water and pouring.

3. Suitable for soil: it is widely used in plain clay land, hard rock land in mountainous area, dry land of hilly hill, etc., and special soil paddy field and swamp, please call to buy special models.

4. The new handle is a lever design: advantages, more flexible and convenient operation.

5. Unique features of multi-functional garden management machine

Ditch effect is good: depth up to 30 cm, width between 15 cm to 40 cm, change the tool, depth and width flexible adjustment, easy operation, simple and practical.

Durable: thickened body, chain and gear drive, cutlery are 75 manganese steel forged, very wear-resistant, durable and economical.

6. Mini tiller cultivator can be equipped with many kinds of engine in line with national environmental protection requirements, such as 170F, 173F, 178F, 186F, etc;

7. Using front drive and back rotary tillage, easier operation;

8. Mini tiller cultivator is suitable for orchard, greenhouse operation.
